Vibration Test System

This test system generates vibration according to the parameters such as arbitrary force, acceleration, and frequency. It can evaluate various industrial products by applying vibration load.

Vibration Testing System

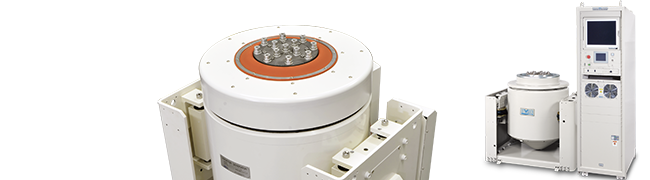

EMIC Electrodynamic vibration test system for evaluating industrial products against vibrations. This system consists of a vibration generator, a power amplifier, and a vibration control system. It can provide a vibration test to cope with various loads such as sine vibration, random vibration, mechanical shock pulse and replication of real-time trace.

F Series - Standard System
:Exciting Force = 1300 to 60000 N
FH Series - High Velocity System
:Max. Velocity = 2.0 to 2.3 m/s Large
FL Series - Large Displacement System
:Max. Displacement = 100 mmp-p
FV Series - Ultra High Speed System
:Shock Pulse Duration 11 ms & Level 980 m/s2 (100 G)
FT Series - Transportation Test System
:Most appropriate for transportation tests.
FC Series - Large Water Cooled System
:High exciting force = 60k to 200 kN
FP Series - Permanent Magnet System
:No Field Coil·Ultimate energy saving System
FM Series - Triaxial Electrodynamic System
:Multi-axis vibration test system Max. Frequency 2000 Hz
FB Series - Triaxial Electric Servo System
:Multi-axis vibration testing system
 for transportation test

Specification

Specification Seet New & Old Model (PDF)

For more info, please refer to CatalogCatalog DownLoad
Get ADOBE READER

To view and print this report, you will need to download the Adobe Reader software (see the download link at left).

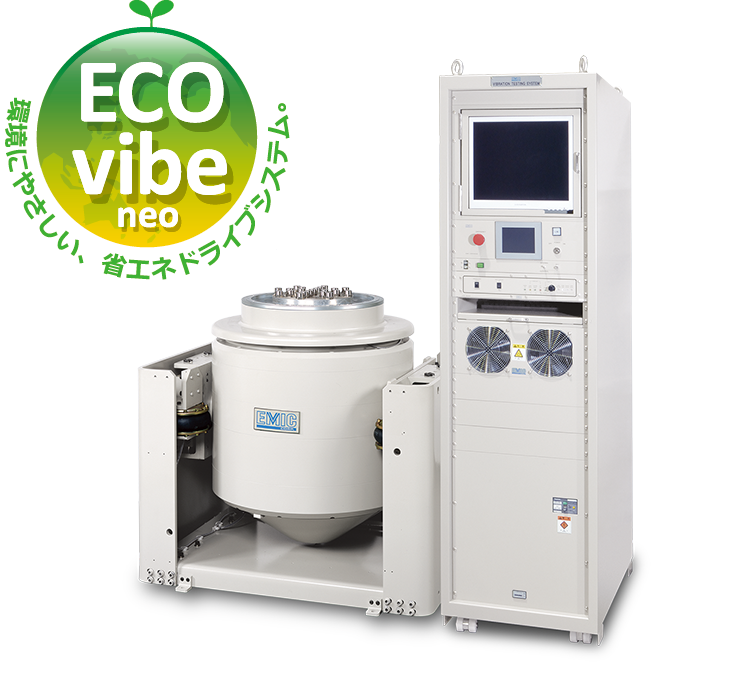

Energy Saving System「ECO-Vibe neo」

ECO-Vibe neo has been designed for an eco-friendly vibration test system. The test conditions with a vibration test system depends on a unit under test. Generally, the exciting force required for performing a vibration test can be calculated by the product of mass (e.g. test article, jig, table, etc.) and test acceleration. But, when the required exciting force is smaller than the maximum rated exciting force of the vibration test system, the field power supply that the constant current has to be continuously provided to produce the DC magnetic field constitutes a large part of power consumption compared with the drive power for the moving element. ECO-Vibe neo can reduce the power consumption by choosing the exciting force in this case. In addition, you can enjoy a reduction merit of the running cost from the first year when the system is introduced because initial cost is zero.
