COMBINED ENVIRONMENTAL RELIABILITY TEST SYSTEM
(TEMPERATURE/HUMIDITY-VIBRATION)

This system can test products against complex loads by applying vibration, thermal and humidity stresses simultaneously. The test condition for industrial products shall reflect well on the field environment so that they can successfully run in violent cold or blazing hot environments. Therefore, this test system is highly necessary for them.

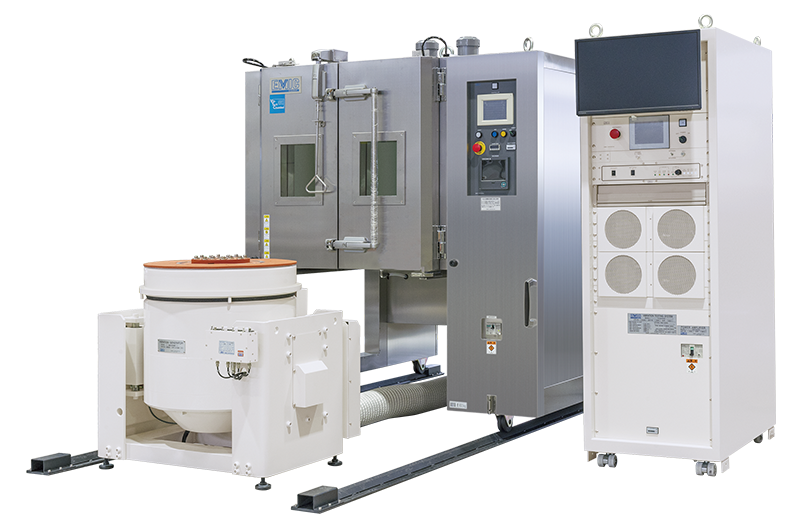

VC SERIES TEMPERATURE/HUMIDITY-VIBRATION TEST SYSTEM

Temperature/Humidity Chamber combined with F Series Vibration Test System

Specification

VC_SERIES_TEMPERATURE_HUMIDITY-VIBRATION_TEST_SYSTEM.pdf

Get ADOBE READER

To view and print this report, you will need to download the Adobe Reader software (see the download link at left).

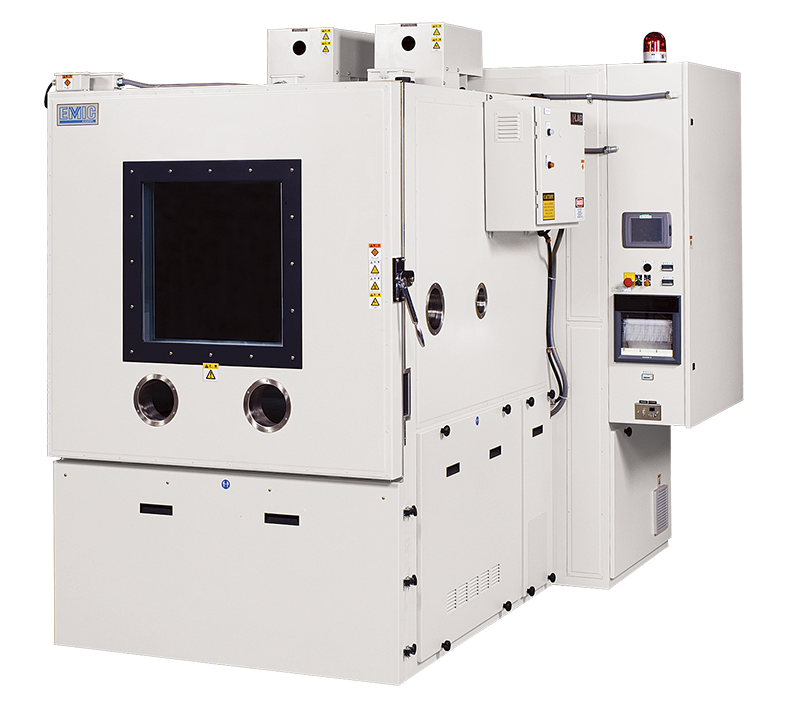

EHVC SERIES TEMPERATURE/HUMIDITY-VIBRATION TEST SYSTEM
(RAPID TEMPERATURE CHANGE RATE)

The EHVC Series is designed for highly accelerated life testing, the demand of which from customers is increasing today. This is a joint system of the AGREE chamber and thermal shock chamber that we have manufactured and makes the temperature rate up to 20℃/min feasible with a compressor only.
With this feature, the highly accelerated life test such as AGREE tests, most thermal shock tests can be performed with one unit.

Specification

EHVC_SERIES_TEMPERATURE.pdf

Get ADOBE READER

To view and print this report, you will need to download the Adobe Reader software (see the download link at left).

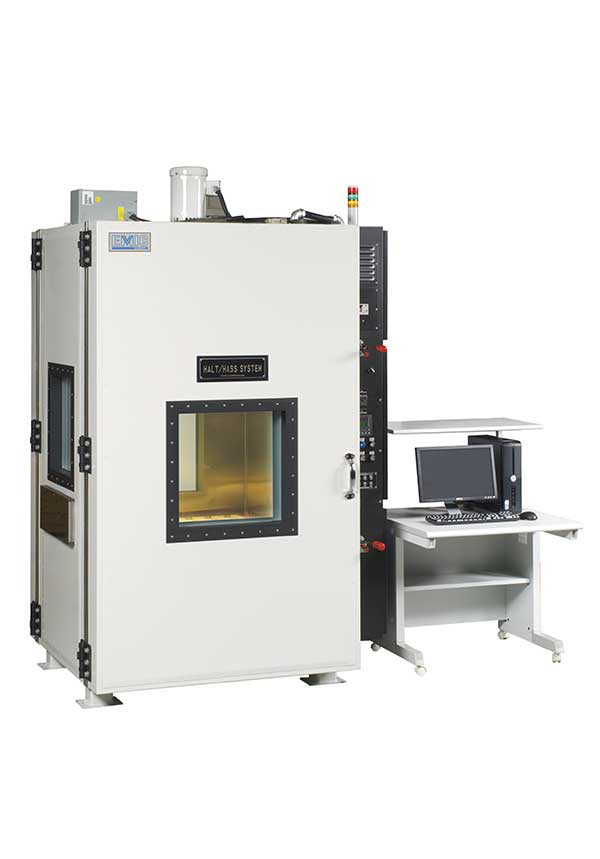

VTC SERIES HALT/HASS TEMPERATURE-VIBRATION TEST SYSTEM

HALT/HASS testing challenges the design, components, sub-assemblies and final assemblies of today's manufactured products. Stresses are applied through a number of conditions to set operational limits and ultimately precipitate failure in the HALT/HASS test environment. Rapid thermal change rate is one of the classic conditions that facilitate product stress.
VTC Series chambers are equipped with an LN2 cooling system, with modulating valve and directed air flow to the product, provides the rapid thermal change rates required to achieve maximum product stress. Additionally, these rates are accomplished with smaller space requirements, lower audible noise, no water requirement, and lower maintenance costs than a typical refrigeration system.

Specification

VTC_SERIES_HALT.pdf
