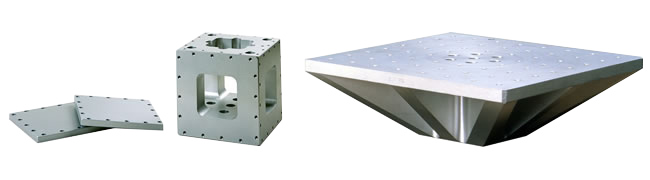

Auxiliary Table, Attachment

Properly designed fixture and table are indispensable to the aimed vibration test. Design of fixture and table requires many factors such as testing acceleration level, required exciting force, reasonable mass, proper choice of material, required surface area for test specimen, and frequency range specified in the test standard as well as the technical know-how.Our experienced engineers can design and manufacture the special fixture and table to meet your specific requirements.

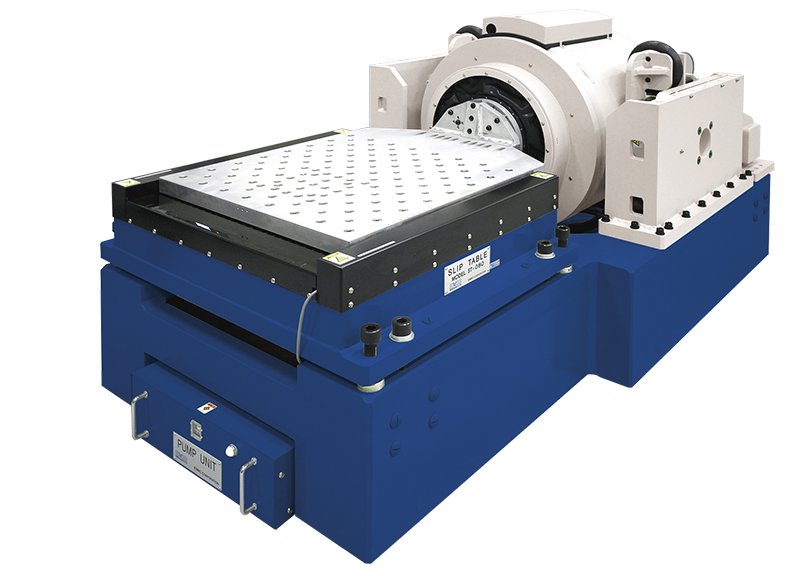

Horizontal Slip Table

Horizontal Slip Table System is the most familiar option to perform a horizontal testing of a bulky unit or an article of which configuration cannot be changed.

Specification

Horizontal_Slip_Table.pdf

Get ADOBE READER

To view and print this report, you will need to download the Adobe Reader software (see the download link at left).

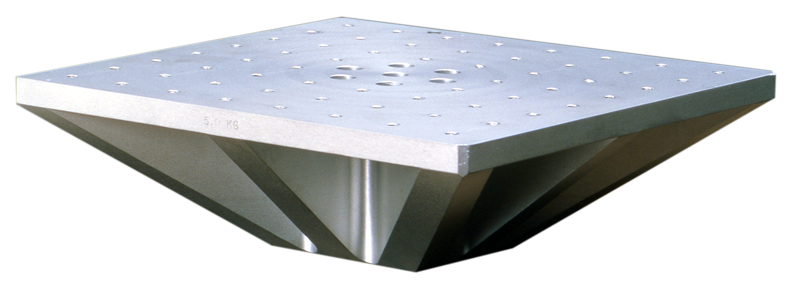

Vertical Auxiliary Table

Vertical Auxiliary Table is the attachment for vertical testing to increase the vibration generator's mounting surface. It is used for transportation/packed- products test for foods, chemicals including large products such as electrical appliance, OA equipment.

Specification

Vertical_Auxiliary_Table.pdf

Get ADOBE READER

To view and print this report, you will need to download the Adobe Reader software (see the download link at left).

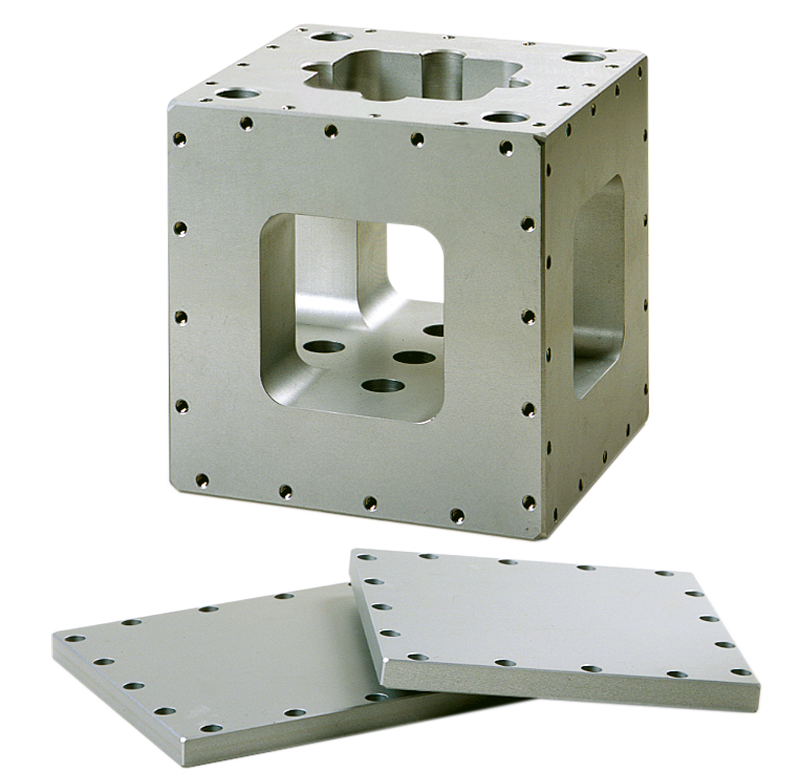

Cubic Style Fixture

Cubic Style Fixture is used for exciting a relatively small and light specimen such as various sensors, electric equipment the most familiar attachment for vertical testing to increase the shaker's mounting surface. It is used for transportation/packed- products test for foods, chemicals including large products such as electrical appliance, OA equipment.

Specification

Cubic_Style_Fixture.pdf

Get ADOBE READER

To view and print this report, you will need to download the Adobe Reader software (see the download link at left).
